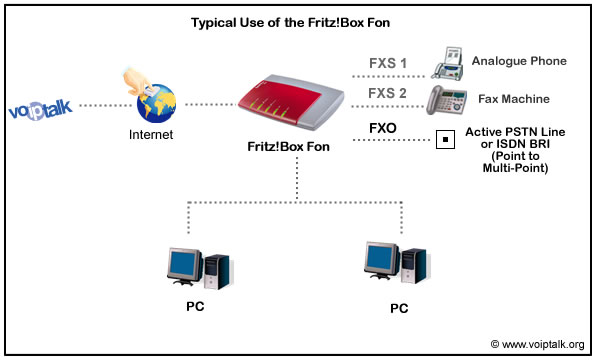

The FRITZ!Box Fon from AVM is an elegant and complete solution for your Internet connection and telephone needs: it includes an integrated ADSL modem, a full-featured router, 2 phone ports for VoIP and a fully functional PSTN port (analogue / ISDN).

The Fritz!box can be connected directly with your DSL connection and provides a robust firewall while still allowing your VoIP calls to pass through unhindered. Computers are not needed after the initial set-up and you can make and receive VoIP calls without having to turn on your computer!

Your existing analogue phone or DECT phone can simply be connected to the box and used. The use of fax equipment (over the ISDN telephone connection) is also possible. The Fritzbox Fon also has "Traffic Shaping" technology, that allows call prioritisation so your calls are clear even when you are surfing or downloading.

FRITZ!Box Fon ata at a Glance:

• FRITZ!Box Fon combines an ADSL router and a PBX
• Economical phone calls over the Internet with VoIP, or over the ISDN or analog phone line
• Internet telephony with existing phones, without turning on the PC
• Connect analog phones, answering machines, and fax machines
• Intelligent bandwidth management for perfect voice quality
• Router with integrated ADSL modem; connects to multiple PCs
• Integrated, TÜV-tested firewall protects connected PCs

FRITZ!Box Fon Connections:

• Two extensions for analog phones, faxes and answering machines
• Conventional phone line, either ISDN or POTS
• USB port for PC or notebook (Windows, Linux, or Mac)
• Ethernet port (10/100 Mbit/s) for computers, game consoles (such as Xbox or PlayStation), or a LAN hub or switch to connect additional PCs

FRITZ!Box Fon Operation:

• Easy router configuration through standard browsers
• Extensions configurable individually
• Call routing for customized use of Internet and landline telephony
• Extensions of an existing PBX can also use Internet telephony
• Speed dialing, dial-out blacklist, call-through function, caller list
• Convenient on-line meter to monitor the ADSL budget
• Switch to Expert Mode to configure custom application scenarios

FRITZ!Box Fon Details:

• PBX for Internet and landline telephony (ISDN and POTS lines)
• Internet telephony in conformance with SIP (RFC 3261)
• Intelligent codec management
• ADSL router with DHCP server and IP masquerading/Network Address Translation
• Integrated ADSL modem with throughput of up to 8 Mbit/s; ready for ADSL 2+
• Firewall with stateful packet inspection and secure port forwarding for local servers
• Bandwidth management: ADSL traffic shaping for optimum use of the ADSL line
• Dimensions: 160 × 122 × 31 mm; tabletop or wall-mounted installation

FRITZ!Box Fon ata Contents: VoIP PBX for telephony and web surfing over ADSL 4 m long cable for ISDN and analog lines 1.5 m LAN cable 1.5 m USB cable RJ45-RJ11 adapter to connect to analog phone line External power supply CD-ROM with installation and application software, and user manual Printed installation manual
