The Fritz!Box Fon WLAN makes IP Telephony as simple as it should be. You won't need to turn your computer on to make and receive calls, and you have the freedom that a wireless network brings. You can access the internet through the Fritz!Box via Ethernet, USB or wireless signals.
The Fritz!Box Fon WLAN includes an integrated ADSL modem, a full-featured router, 2 phone ports for VoIP and a fully functional PSTN port (analogue/ISDN).

Integrated within the Fritz!Box WLAN is a powerful firewall and an elegant VoIP system with a simple interface. Simply place the WLAN away from large metal or signal-emitting devices and with minimal configuration you are on your way.

FRITZ!Box Fon WLAN at a Glance:

• FRITZ!Box Fon WLAN combines an ADSL router and a PBX
• Economical phone calls over the Internet with VoIP, or over the ISDN or analog phone line
• Internet telephony with existing phones, without turning on the PC
• Connect analog terminal equipment, ISDN telephones and PBXs
• Intelligent bandwidth management for perfect voice quality
• Router with integrated ADSL modem; connects to multiple PCs
• WLAN encrypted with factory-set unique key
• Integrated firewall protects connected PCs

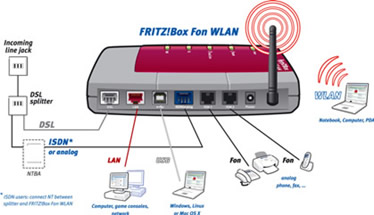

FRITZ!Box Fon WLAN connections:

• 2 connectors for analogue telephone, fax and answering machine

• Connection alternatives for DSL + ISDN or DSL + analogue pstn network

• USB-connector for PC or Notebook (Windows/Linux/Mac)

• Ethernet connector (10/100 Base-T) for the computer, Games console (i.e. X-Box, Playstation) or a network hub or switch (to connect more PCs)
• WLAN connects with the IEEE 802.11g Standard (54 MBit/s)


FRITZ!Box Fon WLAN configuration:

• Simple, intuitive browser menu
• Analogue ports individually configurable

• Specialised configurations possible with Internet and fixed-line telephony

• Speed Dial, Connection journal, Call statistics, Fixed-line fallback

• WLAN- Encoded with individual passwords activated already by the factory

• WLAN-Useable with attached phones or with wireless

• Comfortable online accounting for controlling the DSL call budget

• Expert Mode available for specialised application functions


FRITZ!Box Fon WLAN Details:

• Telephone system for the Internet and fixed-line telephones (ISDN and anlogue connection)

• WLAN-Router with DHCP-Server, IP-Masquerading/Network Address Translation

• Integrates DSL-Modem with up to 8 MBit/s Data transmission rate (already prepared for ADSL 2+)

• Internet telephony SIP conforming to RFC 3261

• Intelligent Codec Management (Codecs: G.711, G.726-32, G.726-40, G.726-24)

• WLAN-Security encryption with WPA-II, WPA, WEP-64 or WEP-128

• Stateful Packet Inspection Firewall, secure port release

• Bandwidth management & "Traffic Shaping"

• Device measures 85 × 140 × 35 mm, Tabletop or wall mounting possible (3.3 × 5.5 × 1.4 inches)

FRITZ!Box Fon WLAN Contents: VoIP PBX system for telephony and wireless ADSL web surfing with WLAN Integrated ADSL modem with router capability to connect multiple PCs 4 m ADSL cable to connect to splitter; RJ45 plug 4 m cable for ISDN or analog phone line 1.5 m LAN cable 1.5 m USB cable RJ45-RJ11 adapter to connect to analog phone line RJ45-RJ11 adapter to connect to DSL line External power supply CD-ROM with installation and application software, and user manual Printed installation manual
