The DrayTek Vigor 2700V ADSL2+ Router is an advanced ADSL2+ router that is optimised for VoIP. A phone port on the rear allows you to connect any regular telephone (cordless or corded) to make and receive voice calls using your Internet connection.

You can make free calls to or from other compatible VoIP users worldwide and via a PSTN gateway, such as VoIPtalk you can make calls to any regular telephone line or mobile phone worldwide, at VoIPtalk rates.

Pre-set "Quality of Service" (QoS) assurance automatically gives priority to VoIP traffic so that call quality is maximised from your available Internet bandwidth. Selectable codecs allow you to tune your ideal VoIP parameters for best call quality and bandwidth use.

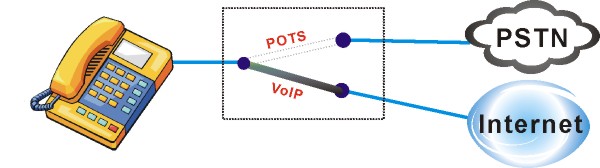

In addition to the ADSL Line, the Vigor2700V connects to your regular analogue phone line too so with just a single phone on your desk, you can choose to make calls using VoIP via the Internet or, by dialling #0 before the call, switch over to your POTS line and dial out via the PSTN (the conventional phone network - for example BT).

Incoming calls can be received from either source too - either POTS or VoIP - the phone will ring on either. The Vigor2700V features automatic failover, so in the event of power loss, the Vigor automatically switches your phone over to the POTS line so that you can still make/receive calls.

Additionally, if you have a VoIP phone number (SIP Address) in the speed dial memory, you can also specify a backup phone number for each entry. In the event of Internet loss, the router will automatically dial an alternative number via your regular telephone line.

As well as VoIP capability, the Vigor2700V has direct ADSL support, compatible with ADSL, ADSL2 and ADSL2+ for line speeds up to 24Mb/s. ADSL2+ boasts increased speed (and higher speed over a given distance) than original ADSL.

Feature Highlights:

• Built-in ADSL modem - plugs directly into your ADSL-enabled line
• Compatible with ADSL, ADSL2, ADSL2+ up to 24Mb/s downstream
• Universal Plug'n'Play (uPnP)
• Firewall - Help protect your PCs from external attacks
• NAT Port redirection, forwarding and IP-DMZ
• VPN Passthrough for VPN client/server running behind the router
• 4-Port 10/100BaseT Ethernet Switch (with automatic uplink detection) for PC/Mac connection
• Automatic support for popular multimedia applications including MSN Messenger
• Dynamic DNS Posting, compatible with popular DDNS providers
• Easy configuration, monitoring & control from web-interface
• DNS Proxy/Cache & DHCP Server
• Voice-over-IP Facilities
  o Phone socket for any regular telephone
  o SIP-compliant, compatible with DrayTEL and other VoIP providers
  o Analogue Phone Line integration, switching & failover.
  o Make voice calls free-of-charge to any other compatible VoIP user worldwide
  o Make low cost calls to any phone worldwide at low rates
  o Receive calls on your own telephone number


Specifications:
ADSL Interface compliant with

• ADSL, ADSL2, ADSL2+
• Auto-Rate Negotiation (512Kb/s-24Mb/s Downstream). Up to 1Mb/s Upstream.

Comprehensive Routing Facilities including

• Internet Protocols : PPP (RFC 1661), PPPoA (RFC2364)
• LAN Protocols : ARP, Proxy ARP, IP, ICMP, IGMP, UDP, TCP
• Authentication Protocols : PAP, CHAP, MS-CHAP
• DNS Proxy & Cache
• Universal Plug'n'Play (uPnP) support

Firewall Facilities

• Keepstate packet monitoring
• Protection against DoS/DDos attacks & IP Anti-Spoofing
• Default Port Blocking through NAT
• User definable packet filtering

Built-in Ethernet switch featuring

• Four port 10/100BaseT auto-selecting (IEEE802.3)
• Automatic selection of full/half duplex
• Automatic selection of regular/uplink mode (no more finding the right cable!)
• Auto detects connection to another switch or hub
• Dual-colour LED for each port to indicate operating speed

NAT (Network Address Translation) featuring

• Port forwarding - individual ports (with optional translation) and ranges of port
• Open internal servers up for external access
• DMZ - For passthrough of all protocols/data to a single internal client
• User configurable DHCP server
• Easy to use Web-based User Interface, management with optional IP address restriction.

Management Logging/Monitoring via

• Syslog
• Web based interface
• Telnet Interface
• Flash-Upgradable memory for firmware upgrades/enhancements by TFTP (utility included)
• Support for local Class C network (up to 253 local users) or smaller subnets.

Physical Characteristics

• Metallic Blue ABS Case
• Flash Upgradable firmware (across LAN using DrayTek TFTP utility)
• Dimensions (mm) : L 218 x W 158 x H 36
• Weight : 359 grams approx
• Maximum Power Consumption : 10W approx
• Client O/S Compatibility : Windows 95, 98, ME, NT4, 2000, XP, Linux & MacOS8/9/X
• Warranty : 3 year manufacturer's RTB warranty
• Box contents : Router, UK PSU, Ethernet cable (1.8M), ADSL RJ11 Line cable (1.8M), Quickstart manual, Utility & Documentation CD-ROM, Wall-mounting screws

Quick Setup Guide

DrayTEK 2700V Vigor configuration instructions
