The SpeedTouch 716WL has now been replaced by the SpeedTouch 780WL

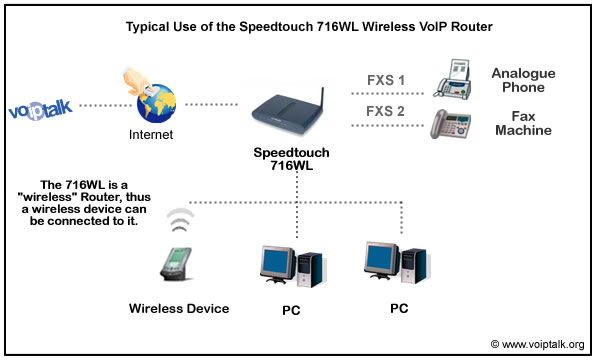

The SpeedTouch 716WL gateway router provides standard broadband ADSL connectivity using USB, Ethernet and Wireless and now supports connection of standard telephone handsets for making SIP based Voice over IP calls over a standard ADSL broadband connection

The SpeedTouch 716WL, supports ADSL2+ as standard and is backward compatible to ADSL ensuring future use with high speed ADSL2+ based services where available. The SpeedTouch 716WL is also capable of future upgrade to support ADSL2+ Annex M, with upload speeds in excess of 2Mbit/s (requires compatible service).

• Wi-Fi certified 802.11b/g operation
• Supports WDS for wireless repeater operation
• 4x 10/100 MDI/MDI-X autosensing Ethernet ports
• 1x USB port
• Integrated ADSL/ADSL2 modem
• Firewall
• WEP and WPA security
• Client registration button
• Secure UPnP support
• NAT helpers for Voice over IP, VPN pass through
• UK easy set up guide
• Complete with 2x ADSL Filters

Voice Features

• Call Feature: basic outgoing and incoming call, Call Waiting, 3 Way Conference Call, Call Transfer, Caller ID
• Call Control: SIP (RFC3261) or option MGCP (RFC2705)
• Voice Transport: compliance to RTP (RFC1889)
• Voice Codec: G.711 (a-law and u-law), G.723.1A, G.726,and G.729A
• Tone Signal: compliance UK
• Tone Generation: support DTMF, dial tone, ring back tone, busy tone, ring tone
• Tone Detection: DTMF
• Echo Cancellation: compliance to G.168
• Supports FAX/Analog Modem function
• Supports T.38 Fax relay
• Supports RFC2833 RTP Payload for DTMF Digits,Telephony Tones and Telephony Signals
• Two VoIP (FXS) ports for VoIP phone calls
• Both VoIP ports supporting intelligent lifeline backup
• Manual selection of PSTN mode or VoIP mode while making a phone call
• Automatic selection of PSTN phone call on dialing emergency numbers
• Supports IP QoS

WAN interfaces

• 1x RJ11 ADSL, ADSL 2 / 2+
• 1x FXO (PSTN)

  LAN interfaces
• 4x RJ-45, 10/100 Ethernet
• 1x USB
• 2x FXS (Voice)
• 802.11b/g Wi-Fi

  Management Features
• Support for DSL Forum TR-69
• Content Filtering
• Remote Support
• Easy configure Firewall


Need more support? Click on the links below:

Speedtouch 716WL User Guide (PDF)

Speedtouch 716WL Data Sheet (PDF)

Quick Setup Guide

SpeedTouch 716WL configuration instructions
