Aastra 480i VoIP Phone Setup

1. Before you complete these instructions you will have to upgrade the phone as instructed in the Aastra Firmware upgrade page.
2. Make sure that the Aastra phone is powered on and plugged into the same router as your PC. Press the Option button. Select option 9 Network and then 2 IP Address to display the IP Address of the phone. Type the Aastra device's IP Address into a web browser on a local PC and you should see the login screen.

   The default login is: admin password 22222.

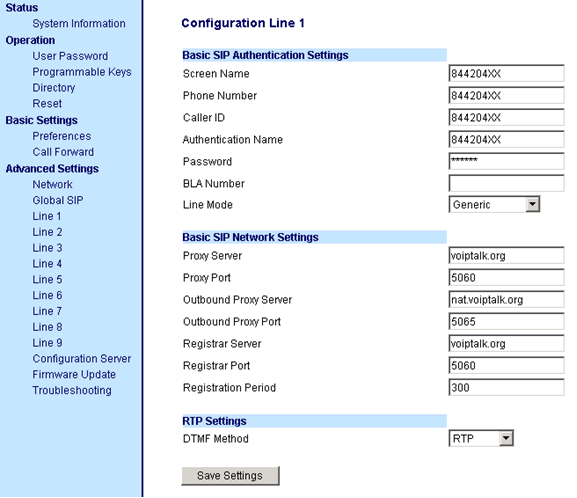

3. Click on Line 1 from the left section of the page and configure as shown in the image below with your own VoIPtalk ID and VoIPtalk Password values. Click on Save Settings to complete.



4. Click on Reset on the left section of the page press the Restart button.
5. After rebooting the phone, dial 902 to verify that you have successfully registered to the VoIPtalk service.
