Ip Dialog SipTone V Setup

Back to voip setup guides directory

  1. Connect one end of the network cable to your data network port and connect the other end to the network (LAN) port on the phone.
  2. Power up the phone.
  3. Press the MENU/BACK button. This will show the phone's IP address as it is picked up from your DHCP server.
  4. Open a web browser on your PC and type the Phone's IP address into the address field (Make sure that your PC and Phone are on the same network).
  5. Click on Phone Configuration tab. Set your caller id in to the field Full Name. On Line 1 set the user id and password. Click on Commit changes button.

    Ip Dialog SipTone V Setup

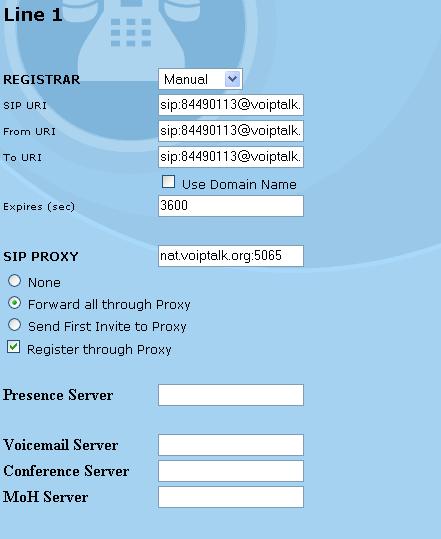

  6. Click on Server tab. Set up the Line 1 with the following data:
    Registrar: manual
    SIP uri: sip:844901xx@voiptalk.org
    from URI: sip:844901xx@voiptalk.org
    to URI: sip:84490113@voiptalk.org
    SIP Proxy: nat.voiptalk.org:5065
    Forward all throught Proxy
    Register throught Proxy
    Click on Commit changes button.

    Ip Dialog SipTone V Setup

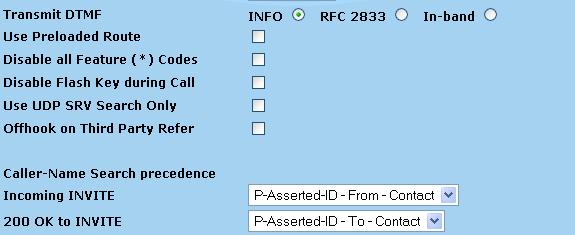

  7. Click on Advance tab. Set
    Transmit DTFM: INFO
    200 OK INVITE: P-Asserted-ID To - Contact
    Click on Commit changes button.

    Ip Dialog SipTone V Setup
