IP-2006 VoIP Phone Setup

1. Plug your IP 2006 IP Phone into the network and power it up. Obtain the IP Address of your phone using the phone menu and access this IP Address using your Web browser. The default login details are:

   Login: admin
   Password: 1234

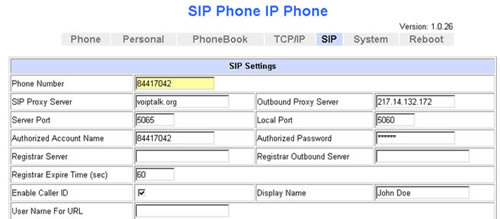

2. Go to the SIP section and configure the SIP details as displayed below using your own VoIPtalk ID and VoIPtalk Password where appropriate. To retrieve your VoIPtalk password go to your account page and click on your VoIPtalk ID.

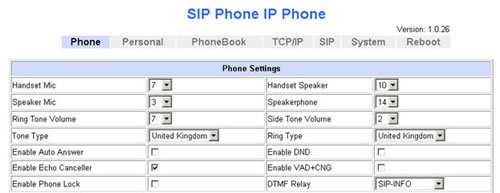

3. Go to the Phone section and configure the phone as shown below, paying particular attention to the DTMF Relay setting and Enable Echo Canceller.
