Linksys 3102 VoIP Adaptor Setup

Back to voip setup guides directory

  1. Connect network cable, power supply and analogue handset.
  2. After the unit has finished powering up, pick up the handset and dial **** to access the Linksys voice menu. At the voice prompt, dial 110# and you should hear the IP Address of the WAN port. Go to a web browser and type in the IP Address like so: http://IP_ADDRESS/admin/advanced. If you want use the LAN port the default IP is: 192.168.0.1

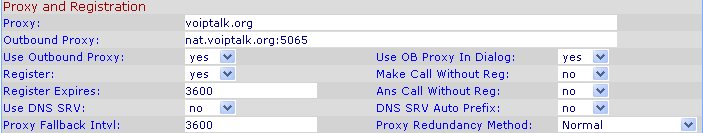

  3. Select the Admin login and press on advanced. Select on Voice tab the Line 1 tab and configure your account details exactly as displayed in the image below:
    Set Proxy to: voiptalk.org
    Set Outbound Proxy to: nat.voiptalk.org:5065
    Set Use Outbound Proxy to yes
    Set Register to yes

    Linksys 3102 VoIP Adaptor Setup

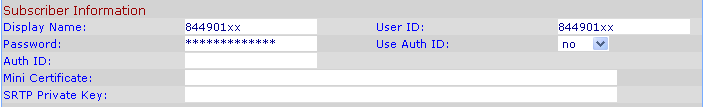

  4. On the same page, set up your Subscriber Information as displayed in the example below.
    Set Display Name to your VoIPtalk ID
    Set User ID to your VoIPtalk ID
    Set Password to your VoIPtalk Password

    Linksys 3102 VoIP Adaptor Setup

  5. If you need to enable * keys, change the Dial Plan section as displayed below.

    Linksys 3102 VoIP Adaptor Setup
