SNOM M3 IP DECT Phone Setup
The Snom m3 works with VoipTalk only with the firmware version 1.11 or major.
To update the firmware please perform the following step:
Press the central button on the hadset
1) Choose setting on the menu
2) Select System settings
3) Enter the code “0000”
4) Select firmware update
5) Choose the last , it should be version 0111 or major.
6) Don't uplug the power until the end of the upgrade process.
- To prepare the gateway connect the Ethernet cable to the NET port on the base and then to a LAN port on your network. Place the handset in the charger, and charge the battery. When you place the handset in the charger, the handset automatically registers with the gateway.
- Open a browser on your PC, go to the IP address of the gateway (Press the volume up key to get the IP address).
- Log in to the menu. default settings: username: admin password: admin
-

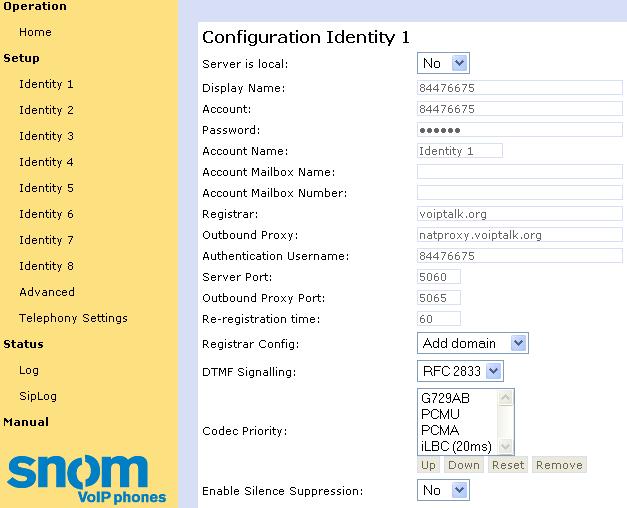

In the menu, choose Identity 1. Fill in the SIP user data:
Server is local: No Display name: VoIPtalk id Account: VoIPtalk id Password: password (To retrieve your password go to your account page and click on your VoIPtalk ID). Account Name: Identity 1 Registrar: voiptalk.org Outbound Proxy: nat.voiptalk.org Server Port: 5060 Outbound Proxy Port: 5065

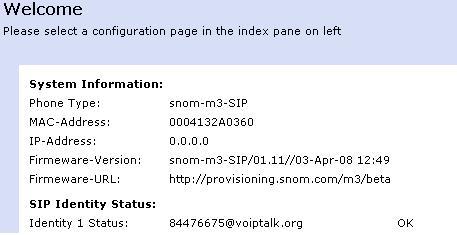

Click on button Save and Reboot the device - After the reboot on the home page you should see the account ready.
For more information and firmware update go to http://wiki.snom.com/wiki/index.php/Main_Page
